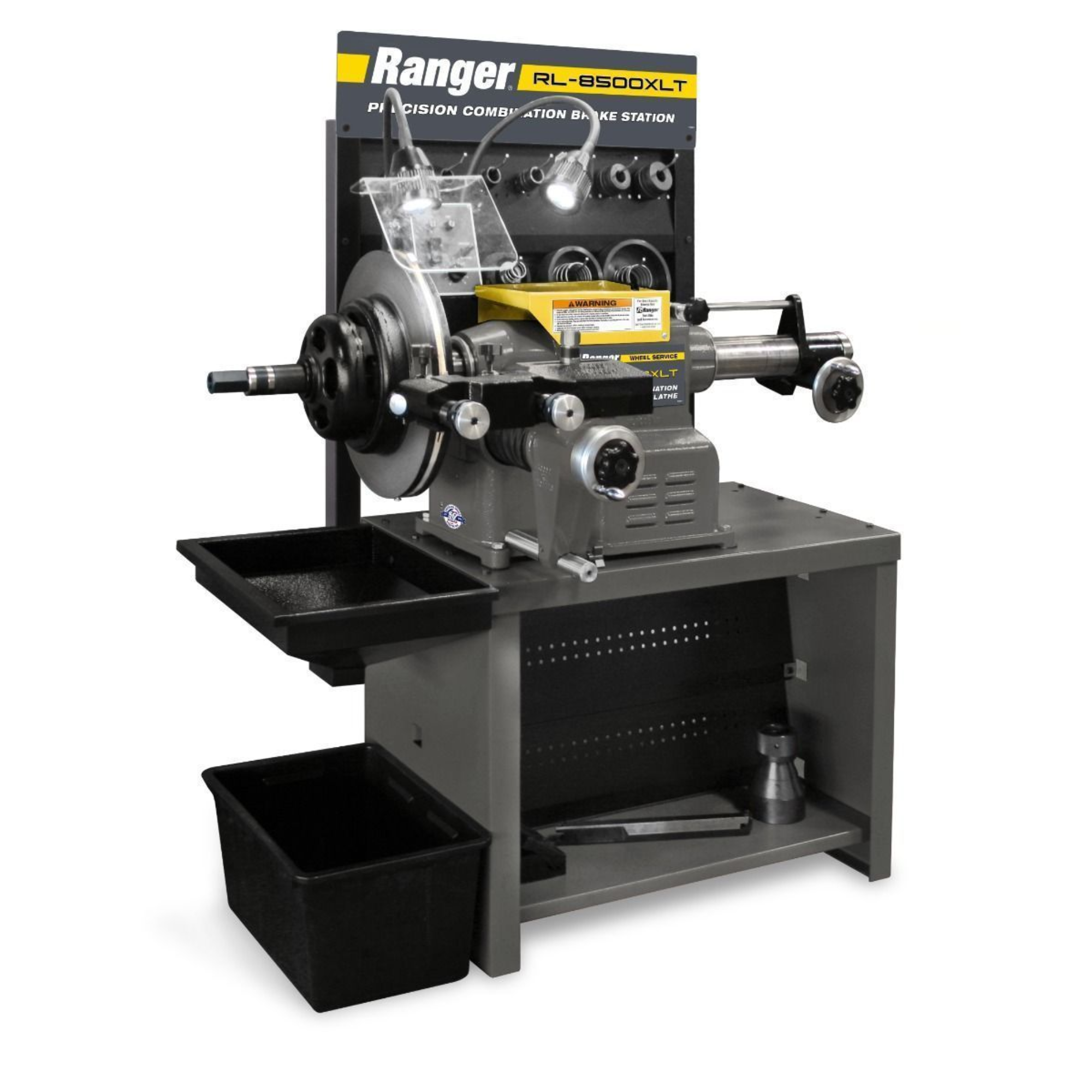

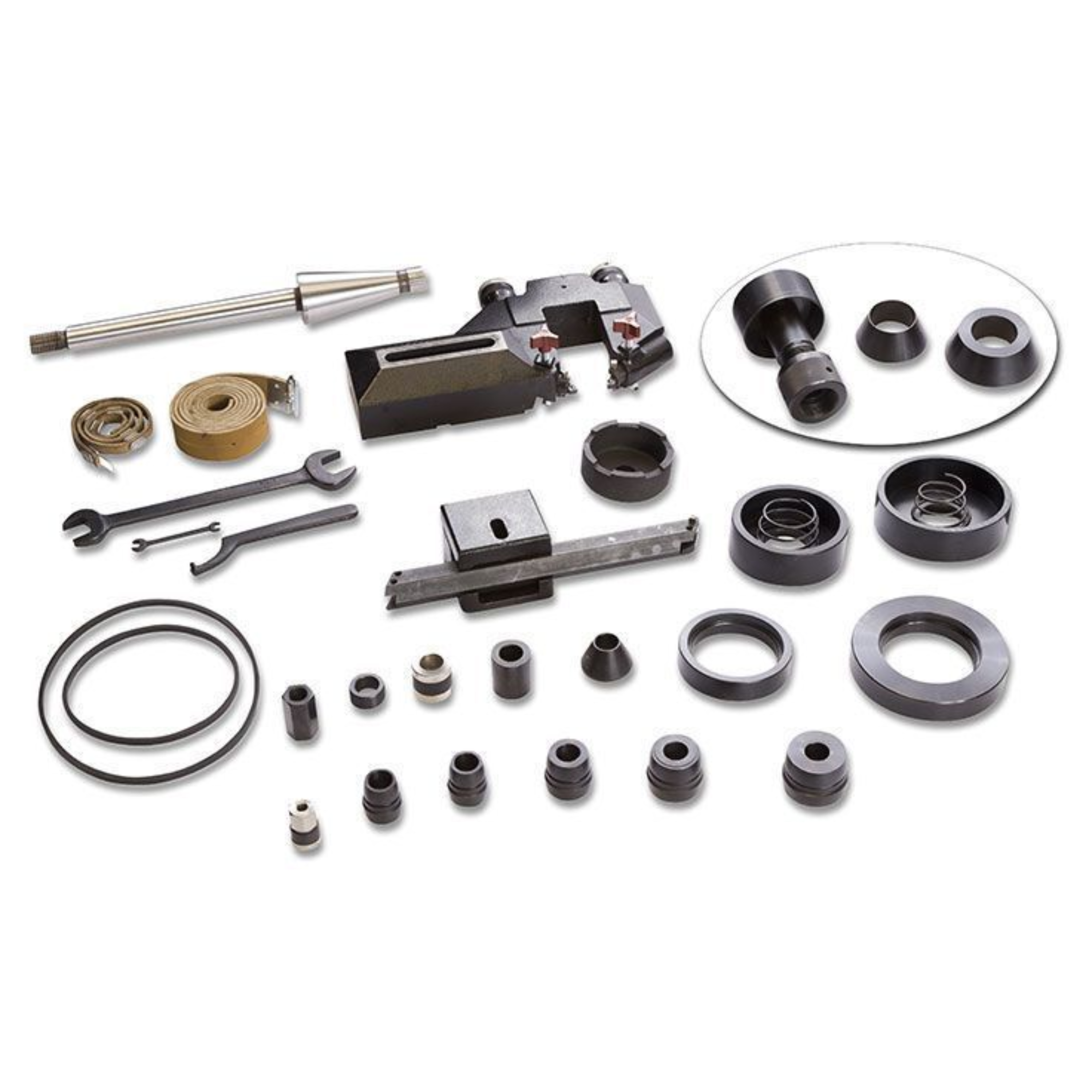

Combination Disc/Drum Brake Lathe with Bench & Standard Tooling / Super-Duty

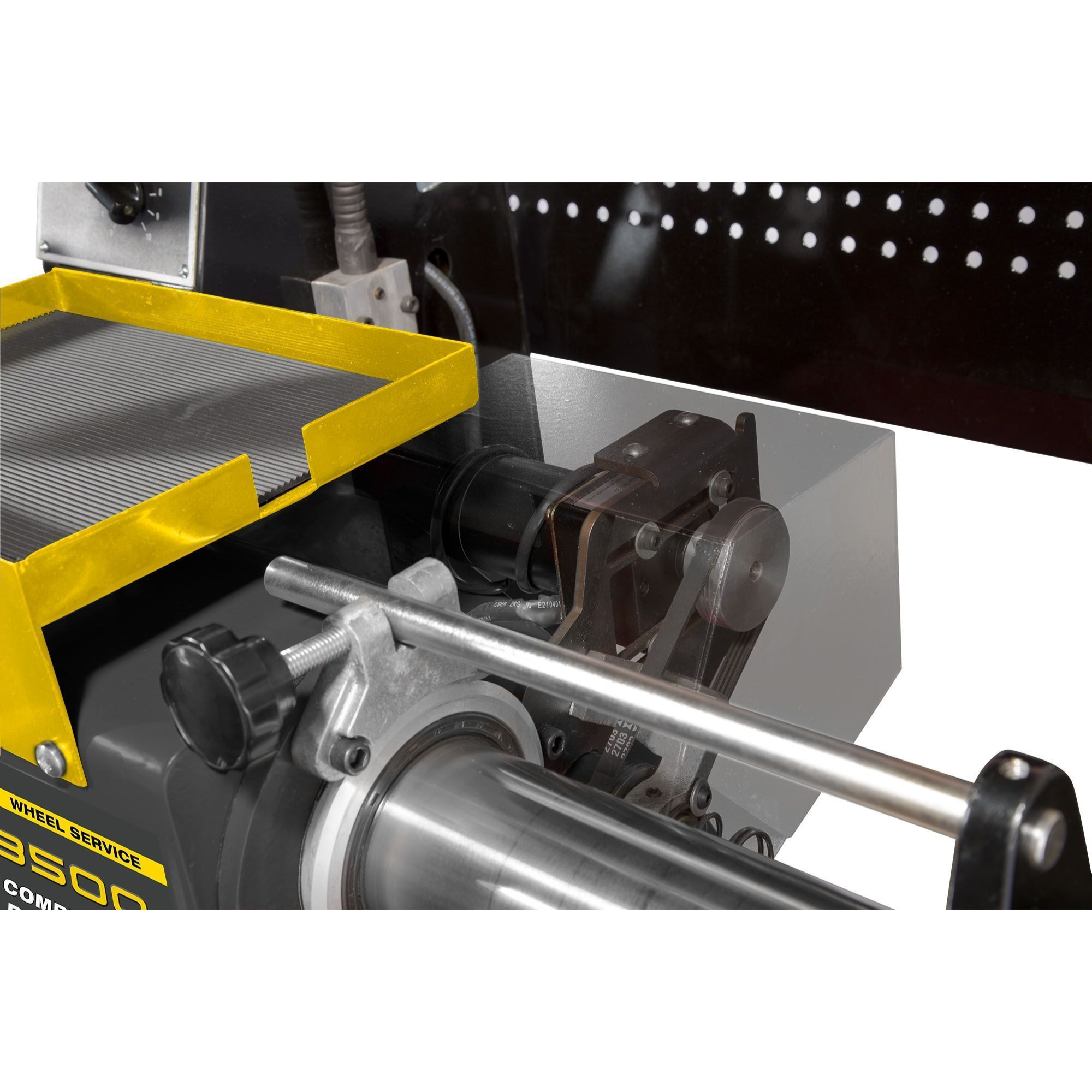

The heavy-duty, extended RL-8500XLT combination brake lathe is capable of truing a full 10” deep brake drum. It features independent DC servo motors to command both the spindle feed drives and cross feed drives. This eliminates complex gear boxes and transmissions found on mechanically-driven lathes.

Specifications:

• Max rotor thickness : 2.5" (64 mm)

• Max rotor diameter  : 17" (432 mm)

• Brake drum diameter : 6" - 28" (152–711 mm)

• Max load with 1" arbor : 68 kg

• Max load with 1-7/8" truck arbor : 113 kg

• Spindle travel : 248 mm

• Spindle speed : 150–200 rpm

• Cross feeds per revolution : 0.000"–0.010"

• Spindle feeds per revolution : 0.000"–0.020"

• Motor drive unit : 1Ph/230V/50Hz

• Overall mounted height : 1,575 mm

• Spindle to floor (mounted) : 1,003 mm

• Required floor space (width) : 1,347 mm

• Required floor space (depth) : 914 mm

• Weight including bench and tools : 331 kg
