Applications:

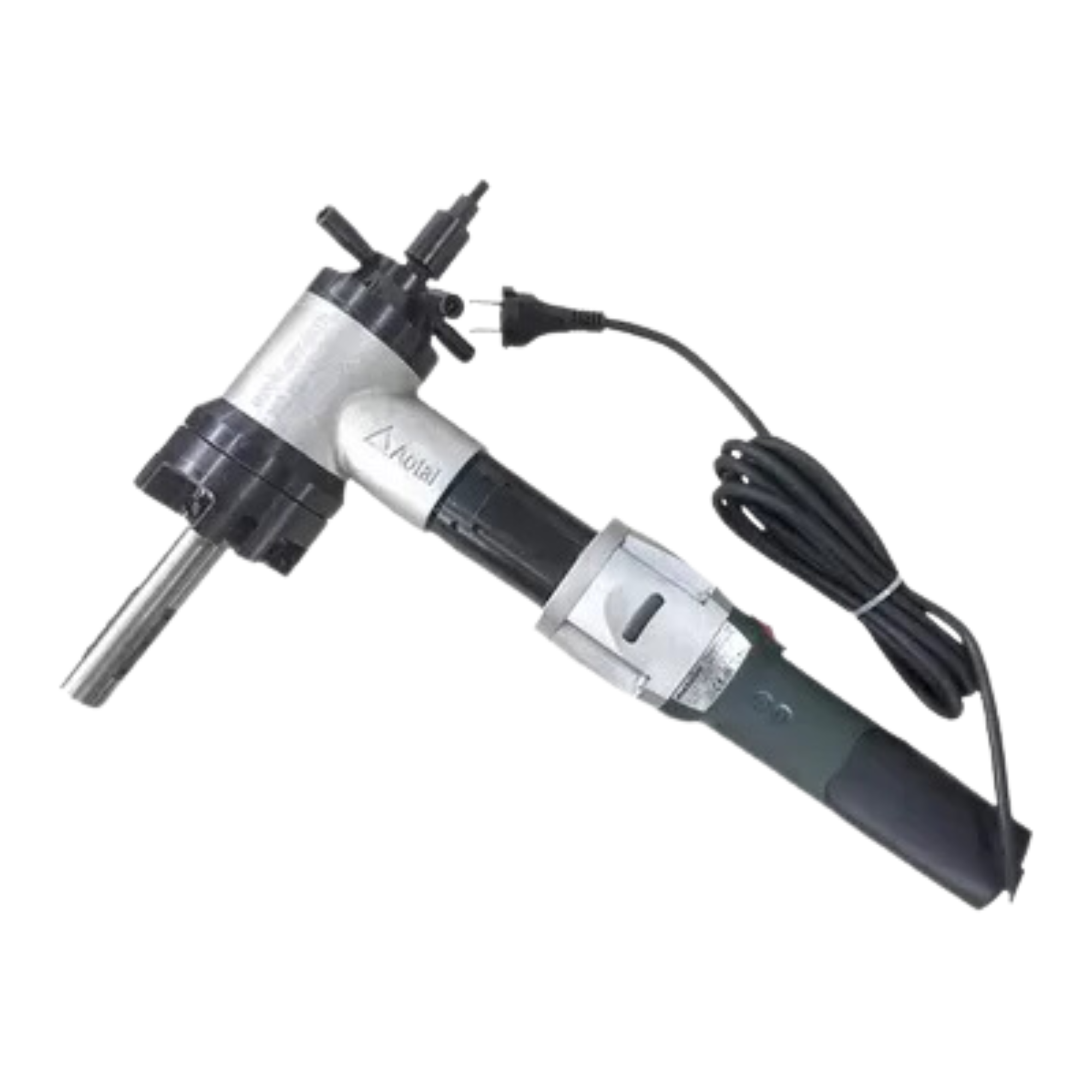

The ID mounted Tube BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts T shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation.

The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.

• Boiler Pipe end beveling
• Heat Exchanger Inside beveling
• Pipe facing
• Flange tube beveling

Features:

• Cold cutting, without influence the material of the pipe
• ID mounted, adopt T structure
• Varity of beveling shape: U, Single-V, double-V, J beveling
• It can also be used for repairing inner wall and deep hole processing
• Customized machine is acceptable

Specification:

• Capacity (IDmm): Ø 12.5-28
• Wall thickness: <3
• Rated power: 0.71kw
• Rotating speed: 53 rpm
