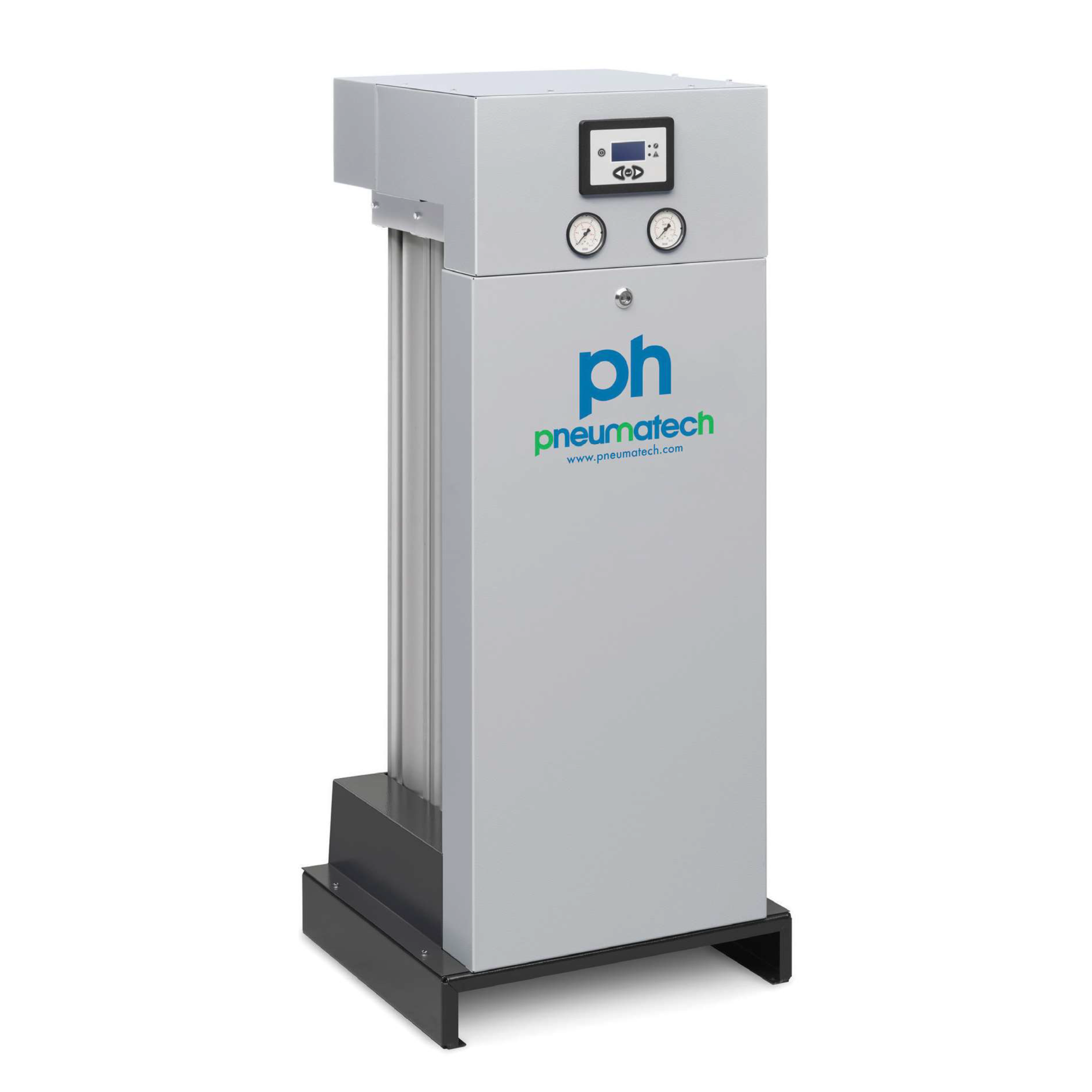

Pneumatech PH 55-550 S Extruded Profile Heatless Adsorption Dryers

D0.00 Available on Request
Tax included. Shipping calculated at checkout.
PNEUMATECHSKU: PH 55-550 S

Pneumatech PH 55-550 S Extruded Profile Heatless Adsorption Dryers

D0.00 Available on Request
Tax included. Shipping calculated at checkout.
WhatsApp Order on WhatsApp

Pickup currently unavailable at Garhoud, Dubai, UAE

      Google (Noto Color Emoji 16.0)

ATLAS COPCO GROUP

The PH 55-550 S range ensures clean, dry air with robust design and advanced features. Operating up to 14 bar /203 psi, they offer two PDP variants (-20°C and -40°C), fast valve control, and efficient moisture removal. Standard pre- and after filters, along with optimized operation and intuitive controls, ensure reliability and cost-efficiency.

Exceptional energy efficiency

The PH 55-550 S range minimizes operating costs with advanced energy-saving features, including compressor synchronization, purge nozzle optimization, and optional PDP control for precise performance.

YouTube Explore the full specifications

Unmatched reliability

With a patent-pending valve design, spring-loaded desiccant to prevent crushing, and robust construction, the PH 55-550 S ensures consistent performance and long-lasting reliability.

Simplified operation and maintenance

The PH 55-550 S range offers user-friendly features like an advanced controller for real-time monitoring, easy-to-service desiccant bags, and optional wall-mounting kits for flexible installation.

  • Advanced energy management for lowest operating costs
    Compressor synchronization
    Purge nozzle optimization (2 nozzles)
    PDP control (optional)
  • High reliability and low maintenance costs thanks to unique valve design (patent pending)
  • High-quality desiccant, resulting in a consistent PDP of -20°C or -40°C
  • Spring-loaded desiccant, minimizing the risk of crushing
  • Counter-current regeneration for optimal energy efficiency and guaranteed dry air
  • Designed for transportability & mountability
    Wall-mounting kit for PH 55-140 S (optional)
  • Advanced controller to monitor machine status at all times
  • Desiccant bags for easy service  from the top

  • Heatless adsorption dryers : extruded  profile design
  • Dew points achievable : -20°C & -40°C
  • Pressure range : 4-14 bar / 58-203 psi
  • Ambient temperature range : 1-45°C
  • Inlet temperature range : 1-50°C
  • Power supply : 230VAC 50/60Hz & 115VAC 50/60Hz
