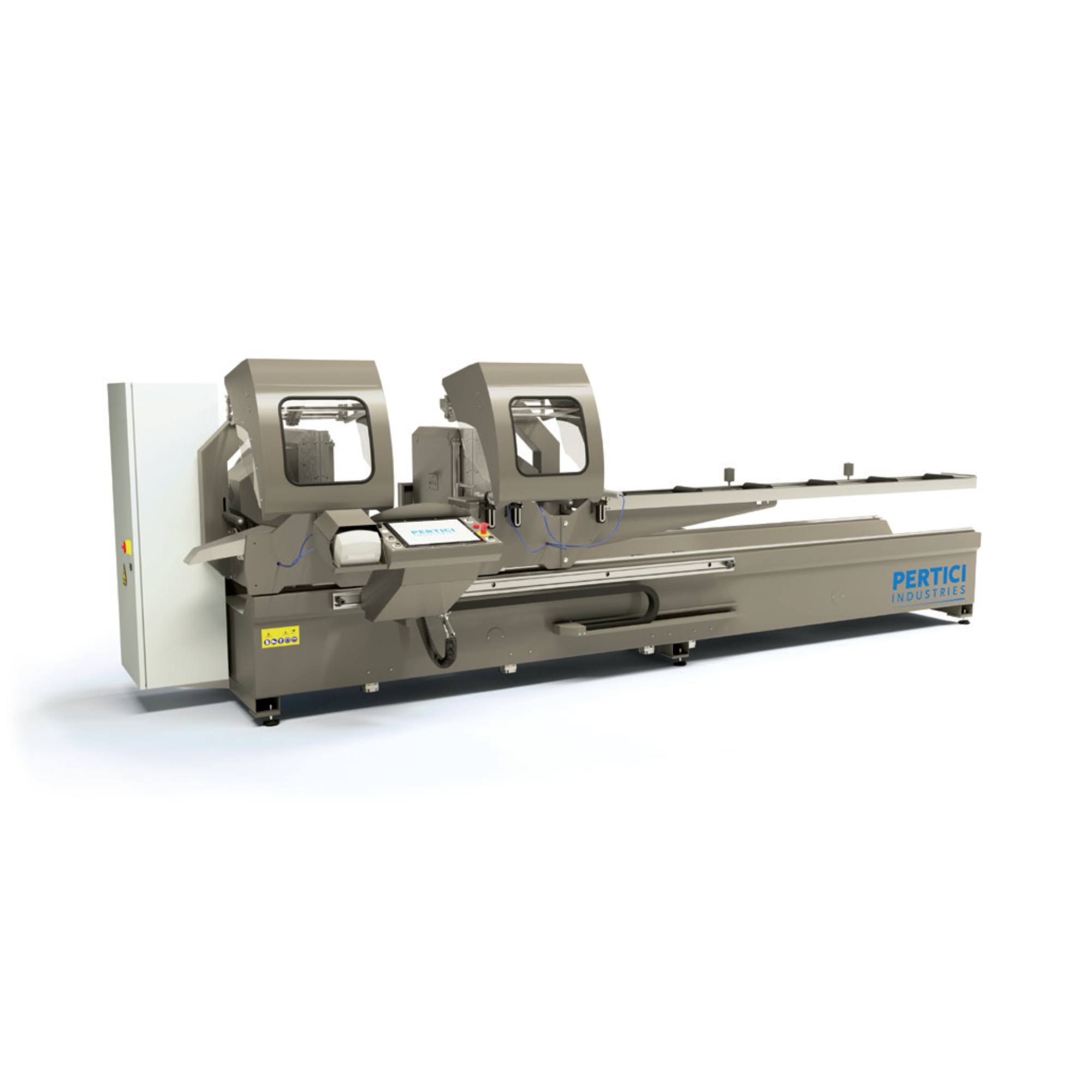

Pertici 500D2K Electronic Double Head Cutting Machine

Pertici 500D2K Electronic Double Head Cutting Machine
Pickup available at Garhoud, Dubai, UAE
Usually ready in 2-4 days
The Pertici 500D2K is a high-performance electronic double-head cutting machine designed for the precise cutting of aluminum and PVC profiles. Equipped with 500 mm carbide blades, this system offers excellent cutting quality, advanced automation, and operator-friendly controls.
Both cutting heads are fully motorized and CNC-controlled, enabling angular cutting at variable angles with high precision. The movable head automatically adjusts along the X-axis, while the fixed head ensures stability. With an intuitive touchscreen interface, automatic blade feed, and integrated profile clamping system, this machine ensures consistent, safe, and efficient production cycles.
Ideal for large-scale aluminum fabrication or window and door production lines, the 500D2K combines Italian engineering with digital control for unmatched productivity.
Technical Specifications
Manufacturer | Pertici Industries (Italy) |
Blade Diameter | 500 mm |
Cutting Angle Range | 22.5° to 90° to 135° |
Cutting Length | Min: ~400 mm / Max: ~5000 mm |
Head Movement | Automatic – CNC X-axis |
Blade Feed | Hydropneumatic |
Display | Touchscreen CNC controller |
Air Consumption | ~150 Nl/min |
Power Supply | 3Ph / 400V / 50-60Hz |
Weight | ~1000–1200 kg |
Key Highlights
- Fully electronic Pertici double-head cutting machine
- 500 mm carbide-tipped blades for high-precision cuts
- Automatic CNC control of cutting angles and length
- Touchscreen interface for programming and monitoring
- Hydropneumatic blade feed ensures smooth, safe operation
- Horizontal/vertical pneumatic clamping for operator safety
- Perfect for aluminum, PVC, and light alloy profiles
- Suitable for window, door, and façade profile production
Pertici 500D2K Electronic Double Head Cutting Machine
D133,000.00
/
