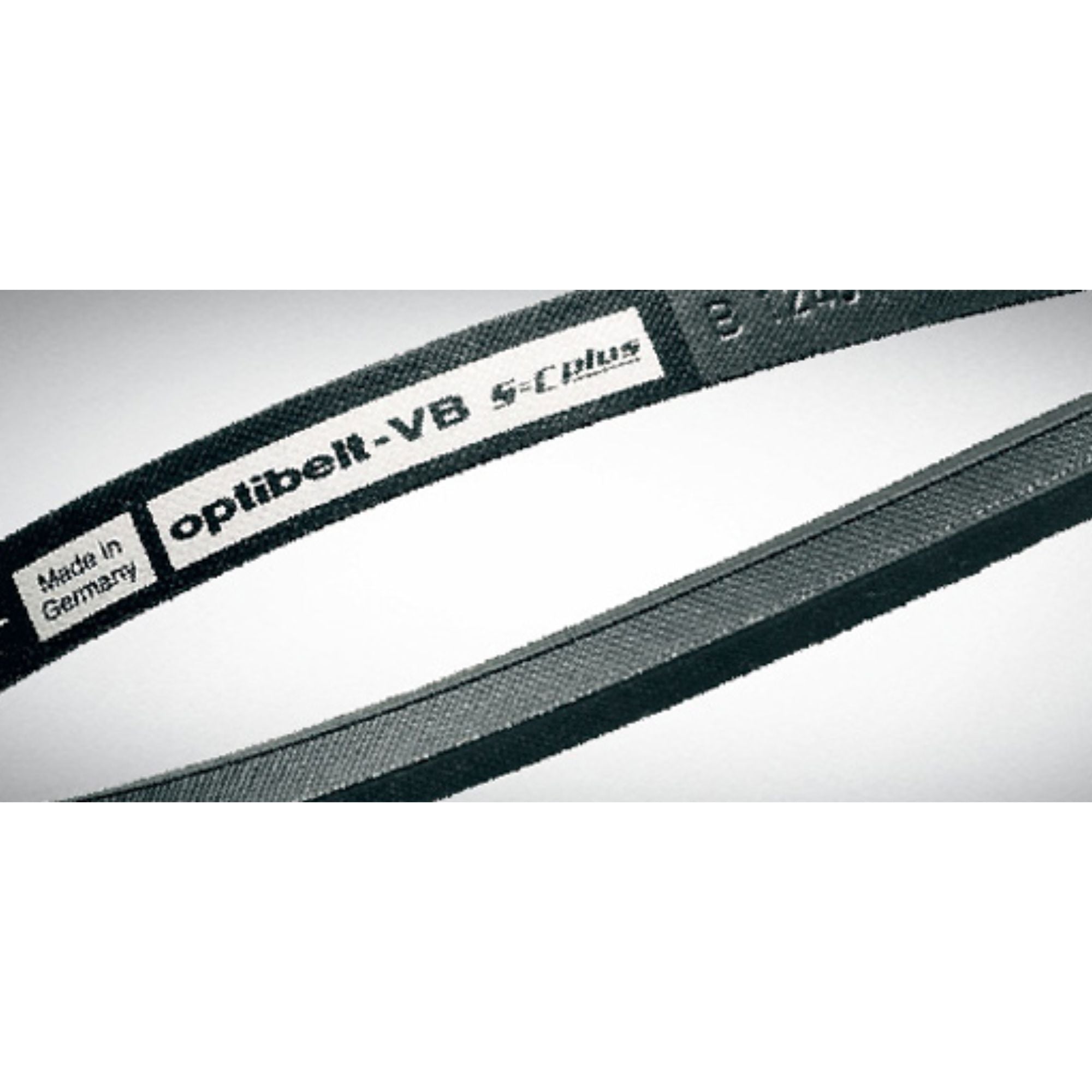

OPTIBELT VB S=C Plus
Profiles: 5, Y/6, 8, Z/10, A/13, B/17, 20, C/22, 25, D/32, E/40
optibelt VB - LC: V-Belts with Light Coloured Cover Fabric Profiles: A/13, B/17, 20, C/22, 25, D/32 on request optibelt LD: Light Duty V-Belts to RMA/MPTA Profiles: 2L, 3L, 4L, 5L on request
Due to its versatile applications, the optibelt VB is the classic model among drive belts. Its qualities really come to the fore in difficult drives for agricultural machinery, just as in unusual drive solutions, such as V-flat drives in mechanical engineering.
Optibelt VB classic belts are always the nominal size without the need to re-measure them! optibelt VB is a classic V-belt and is often used in general mechanical engineering as well as in special drives.

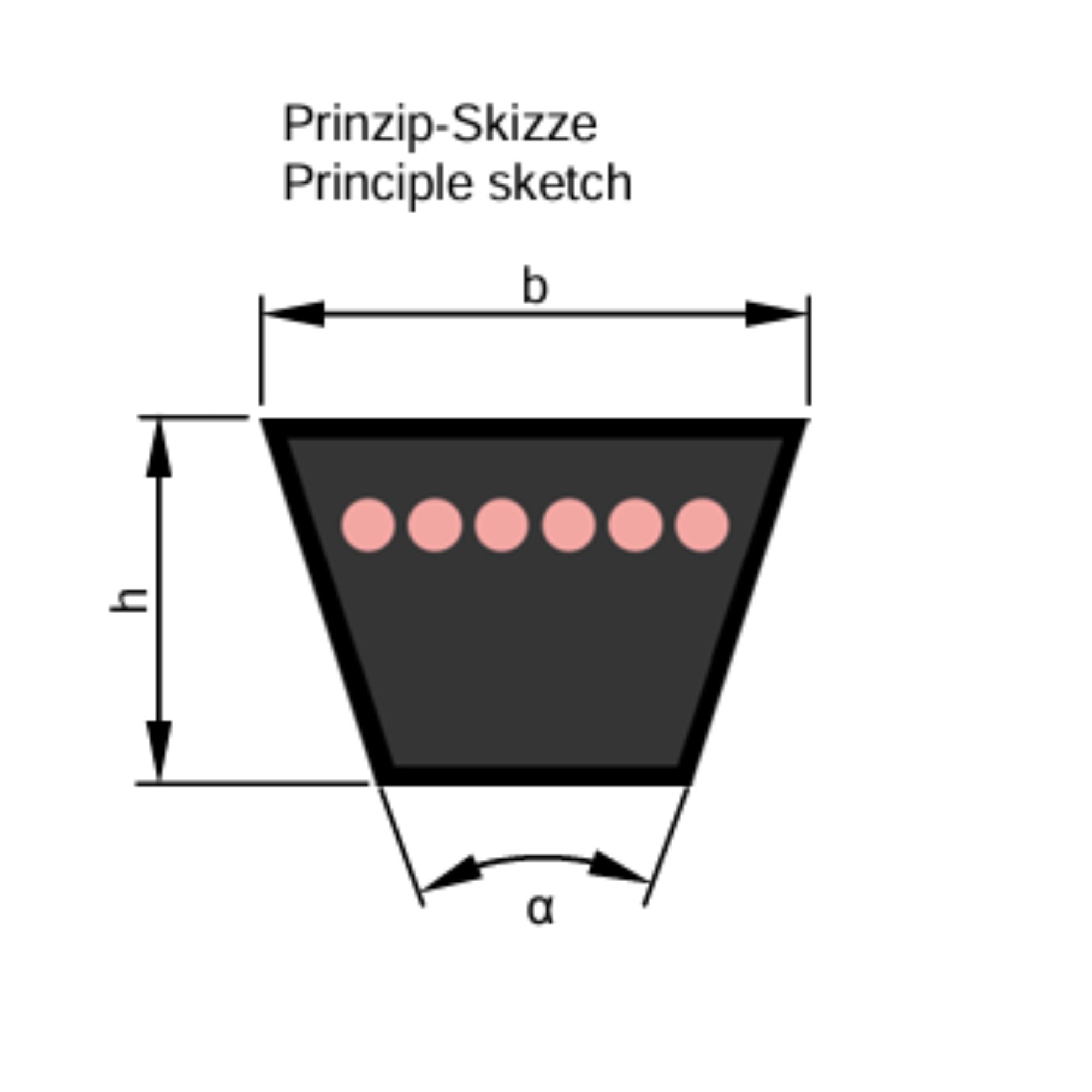

Sections and lengths |
|
---|---|
5 | 200 - 610 mm |
Y/6 | 295 - 868 mm |
8 | 335 - 1270 mm |
Z/10 | 312 - 2522 mm |
A/13 | 437 - 5030 mm |
B/17 | 610 - 7140 mm |
20 | 950 - 6050 mm |
C/22 | 1148 - 8058 mm |
25 | 1460 - 9060 mm |
D/32 | 2075 - 11275 mm |
E/40 | 3080 - 12580 mm |
further dimensions on request |
