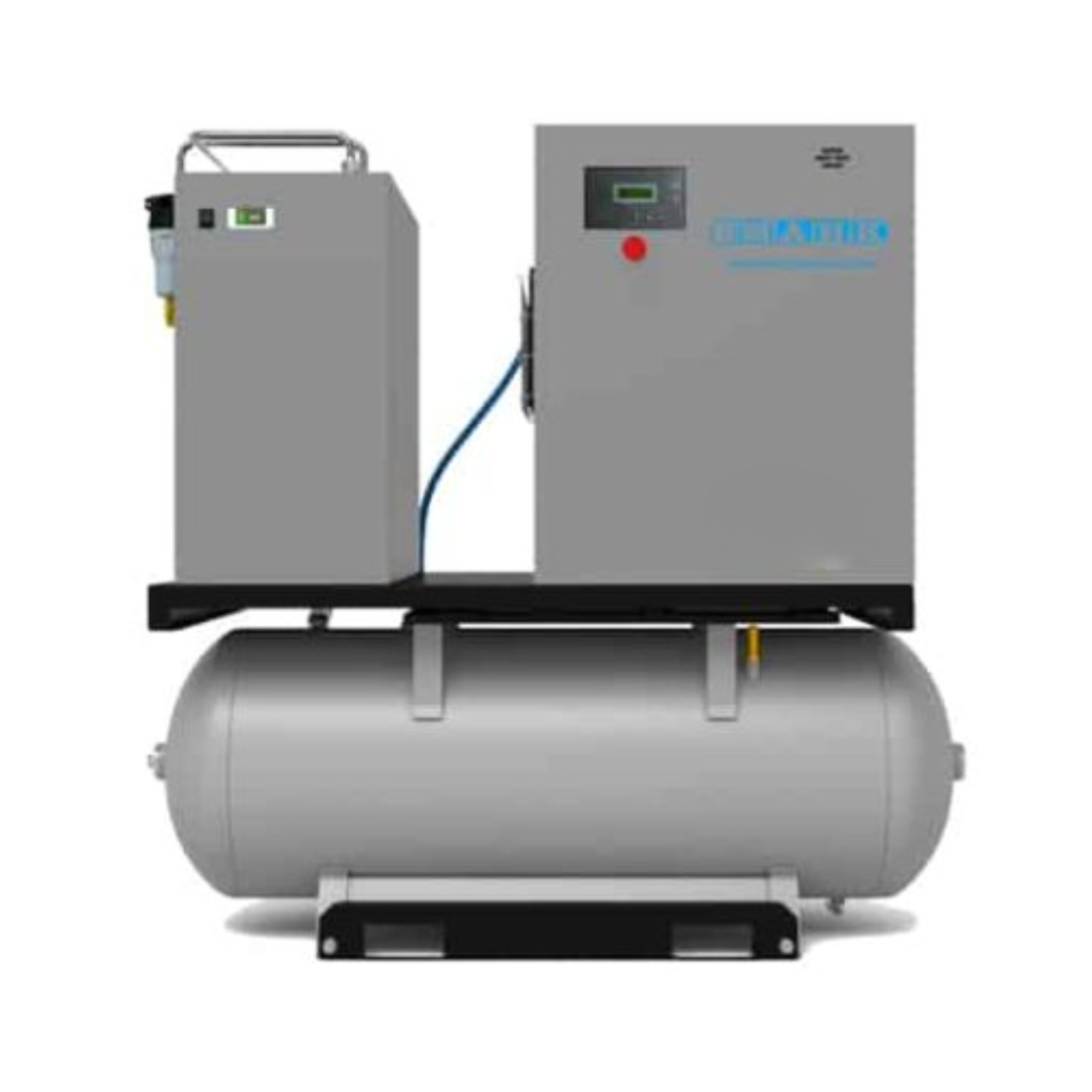

The MARK MSS11-TMDD is an oil-injected rotary screw compressor from the Atlas Copco Group, engineered as a complete, plug-and-play compressed air system. It combines a 15 HP (11 kW) compressor, integrated refrigerant dryer, 500L air receiver, and line filters in one compact, low-noise package—ideal for industrial air compressor applications that demand continuous duty, energy efficiency, and clean, dry air.
Key Highlights
- Rotary screw compressor with oil injection for reliable, continuous operation.
- Integrated refrigerant dryer + 500L air receiver + line filters for clean, dry compressed air.
- 15 HP (11 kW), up to 10 bar / 145 psi, delivering 1380 L/min (48 cfm).
- Low noise operation at 72 dB(A) for flexible indoor installation.
- Plug-and-play & easy serviceability—minimal piping and quick access maintenance.
- Space-saving integrated design reduces installation workload and total cost.
- 3-phase 400V/50Hz industrial power compatibility; 1" air outlet connection.
Technical Specifications
| Model | MARK MSS11-TMDD (Atlas Copco Group) |
| Compressor Type | Oil-injected rotary screw (integrated system) |
| Air Delivery (FAD) | 1380 L/min (48 cfm) |
| Working Pressure | 10 bar / 145 psi |
| Motor Power | 15 HP (11 kW) |
| Power Supply | 3-phase, 400V, 50Hz |
| Noise Level | 72 dB(A) |
| Air Outlet Connection | 1" BSP |
| Air Receiver | 500 L integrated tank |
| Dryer & Filtration | Integrated refrigerant dryer + line filters |
| Dimensions (L×W×H) | 1537 × 650 × 1430 mm |
| Weight | 430 kg |
Features
- Plug-and-play: one-stop installation for fast commissioning and reliable operation.
- Easy serviceability: quick service access, streamlined maintenance.
- Simplified installation: integrated system reduces piping and site work versus split setups.
Key Benefits
- Cost-saving: complete package—no extra storage tank or connection piping needed.
- Indoor space saving: compact footprint with compressor, dryer, and tank in one.
- Energy efficiency: VSD matches output to demand, reducing power consumption.
- Low noise: 72 dB(A) enables flexible plant placement.
Typical Applications
General manufacturing, packaging lines, automotive workshops, CNC and pneumatic tooling, food & beverage processing—any site requiring continuous, clean, and dry compressed air.
Request a quotation, delivery lead time, or installation guidance. Bulk and dealer enquiries welcome.
