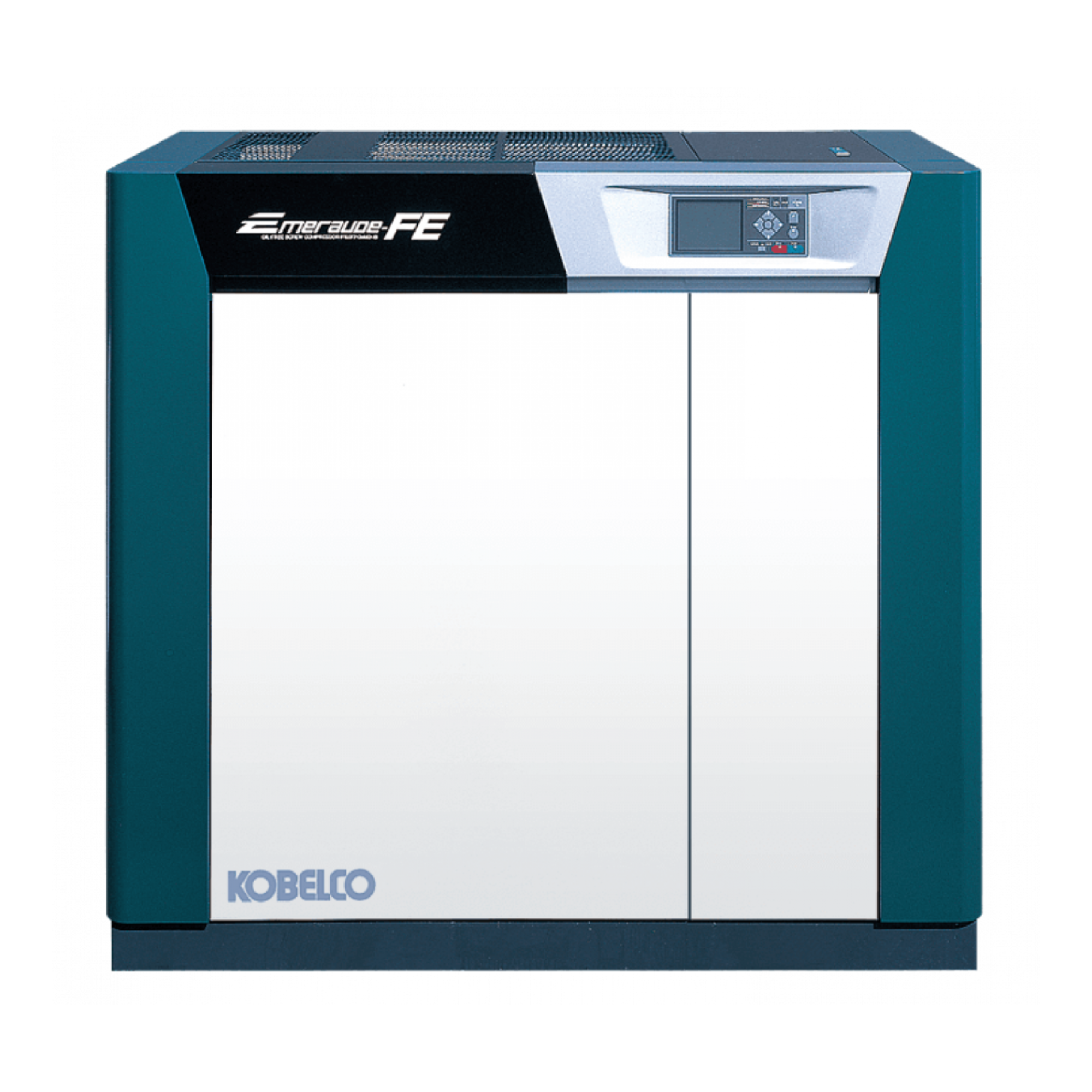

The Kobelco Oil-Free Screw Compressor FE400AH-5 is part of the Emeraude FE series, designed to deliver highly efficient, oil-free compressed air solutions.

Key Features:

• Highly Efficient Two-Stage Compression: The FE series utilizes a two-stage compression process, enhancing energy efficiency by 8 to 28% compared to typical single-stage oil-free screw compressors. This design also reduces discharge temperatures, contributing to improved reliability.

• User-Friendly LCD Controller: Equipped with an intuitive LCD controller, the FE400AH-5 allows users to monitor operating conditions and adjust settings such as discharge pressure. The controller features a waterproof front panel (IP65) and supports data output via Modbus (optional).

• Proven Reliability: Kobelco's unique dual vent hole design prevents oil entry into the compressor chamber, ensuring oil-free operation. The compressor also features a "Gamma Profile" rotor and casing, enhanced with advanced FEM analysis, to bolster reliability. Additionally, MoS₂-coated air-ends and stainless steel components in the second stage improve anti-corrosion properties.

The FE400AH-5 is suitable for industries requiring clean, oil-free compressed air, such as electronics, semiconductor, food and beverage, steel, chemical, and automotive sectors.

*Standard warranty conditions do not apply
