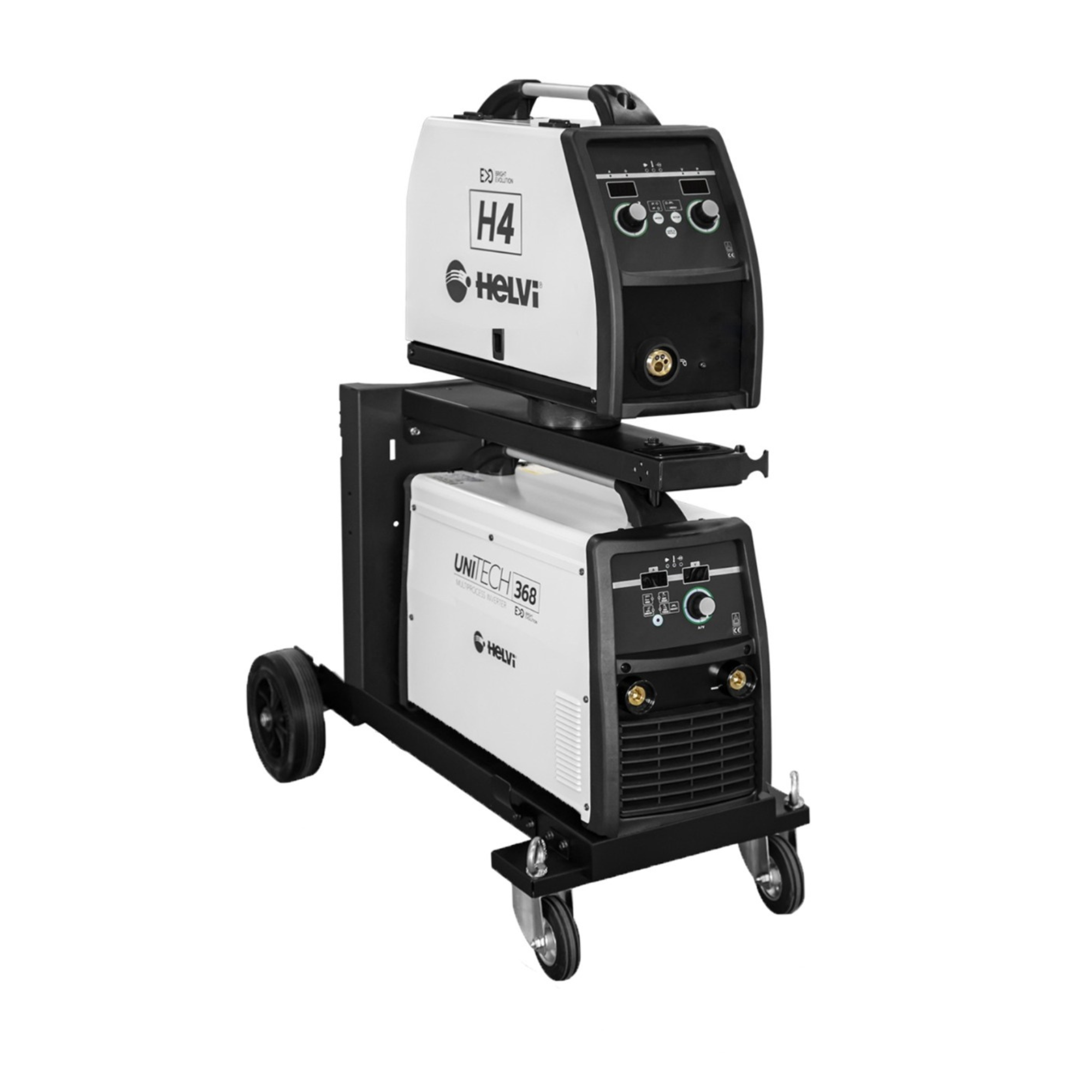

HELVI UNITECH-EVO-368 MIG/MAG-TIG-MMA Inverter
0.00 AED
/
Sold out
HELVISKU:
HELVI UNITECH-EVO-368 MIG/MAG-TIG-MMA Inverter
0.00 AED
/
Sold out
- The UNITECH range simplifies the adjustment of welding parameters, making the welder's job easier.
- Each function and parameter can be easily managed and configured via a simplified control panel.
- UNITECH machines are primarily designed for Manual MIG mode.
- Synergic programs can be activated and selected from the front panel.
- High Duty Cycle and user-friendly control panel make HELVI UNITECH an ideal replacement for older transformer welding machines.
- Features the innovative "SPEED SPOT" function for perfect spot welding in MIG mode on any material.
- The HELVI UNITECH range complies with the new Eco Design standards.
TECHNICAL DATA
- Input voltage: 3Ph/400V/50-60Hz
MIG
- Power 60%: 11.5 KVA
- No load output voltage: 45 V
- Amp. min-max: 30 ÷ 320 A
- Duty Cycle 40°: 320A @ 40%
270A @ 60%
200A @ 100%
MMA
- Power 60%: 9.9 KVA
- No load output voltage: 69.5 V
- Amp. min-max: 20 ÷ 270 A
- Duty Cycle 40°: 270A @ 45%
250A @ 60%
180A @ 100%
TIG
- Power 60%: 8.2 KVA
- No load output voltage: 12 V
- Amp. min-max: 10 ÷ 320 A
- Duty Cycle 40°: 320A @ 40%
270A @ 60%
200A @ 100%
- Insulation: H
- Protec. Degree: IP23S
- Machine (LxWxH): 250x610x440 mm
- Weight: 28.55 Kg
