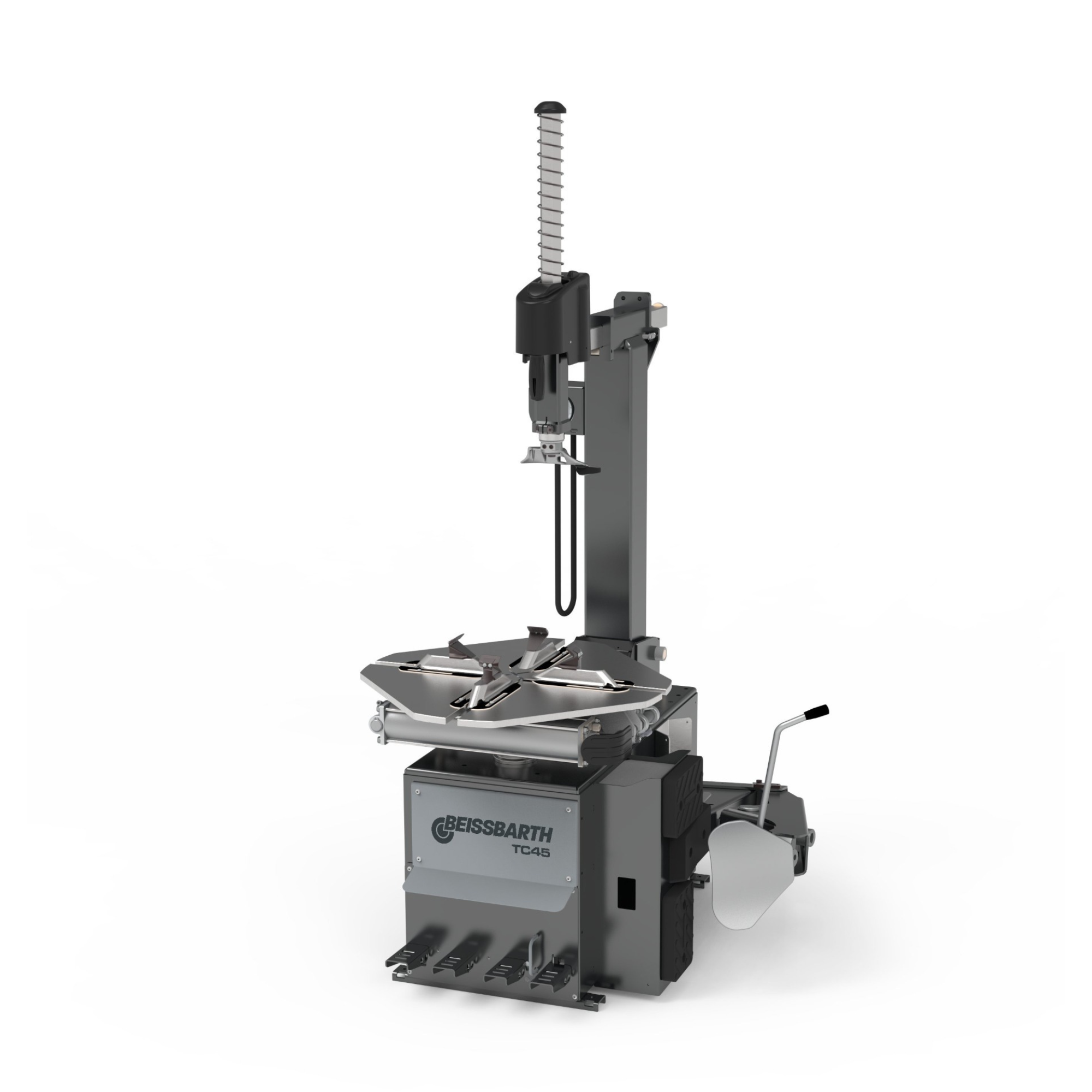

BEISSBARTH TC45 Automatic Tilt-Back Tyre Changer 10-27"
BEISSBARTH TC45 Automatic Tilt-Back Tyre Changer 10-27"
Order on WhatsApp
Pickup available at Garhoud, Dubai, UAE
Usually ready in 2-4 days
Square turntable with automatic centering jaws
- Clamping range from 10-27"
- Double 80mm cylinders for maximum clamping power
- 2 rotation speeds: 8 & 16 rpm
- Square shape for easier lever use
Robust mounting column and head
- Easy tilting via pedal
- Quick vertical and horizontal movement of arm
- Pneumatic locking
Powerful bead breaker side shovel
- Quick and effective loosening of the bead
- Up to 15" tyre width
- Three-way adjustable blade
- Controlled via pedal
- Anti-skid rubber pad protects tyre and rim
Full control with four pedals plus side inflation pedal
- Pedal control for rotation, side shovel, column tilting, and clamping
- Removable pedal unit for easier maintenance
- Safety separator for rotation pedal
- Side inflation pedal
High rigidity by design
- Full metal pedals
- Powerful 50x50mm horizontal arm
- Metal front cover
Upgrade options:
- TCX.PRO, PRO2 or PRO3 assistance column
- Side lift
- Tubeless inflation kit
- Roller board
Technical Data:
- Inner clamping range : 12" - 27"
- Outer clamping range : 10" - 24"
- Max. wheel diameter : 46" | 1170mm
- Operating pressure : 8 - 12 bar
- Max. wheel width : 15" | 381mm
- Power supply : 3Ph | 400V | 50-60Hz
- Motor power : 0.8/1.1 kW
- Max. clamping capacity : 27"
- Max. torque : 1200 Nm
- Rotation speed : 8 | 16 rpm
- Number of mounting speeds : 2
- Clamping device design : Clamping plate
- Bead breaker cylinder force : 25000N @ 10bar
- Beda breaker force on shovel : 13000N @ 10bar
- Turntable height : 670 mm
BEISSBARTH TC45 Automatic Tilt-Back Tyre Changer 10-27"
D18,400.00
/
