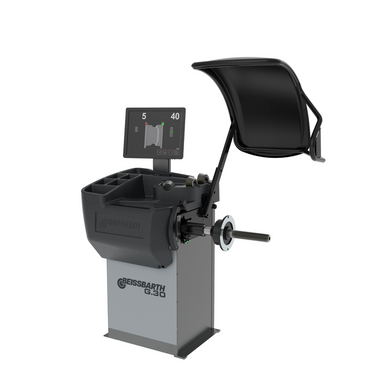

Precise balancing in tight spaces: Compact car wheel balancer

Measurement and balancing:

• Balancing in 4.7 seconds
• Automatic stop of the wheel 15° before correction position
• LED for better visibility when placing weights
• Internal line laser for precise positioning of weights
• Split program for hiding weights behind different spokes

Wheel data recognition:

• Automatic data arm for measuring distance and diameter and weight placement
• Automatic selection ofclip-on and adhesive weight program
• Highest measurement accuracy +/- 0.5g

Auto Adaptive Mode:

• Dynamic tolerance adjustment based on weight and size
• Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver

Wheel guard with integrated sonar:

• Automatic recognition of rim width in steel and aluminum rims
• Without manual input with measuring gauge
• Closing of wheel guard automatically starts balancing program

17" touchscreen monitor:

• Graphical step-by-step illustrations
• Simplifies correct balancing with guided processes
• Touchscreen usable with gloves on

Quick clamping:

• Mechanical clamping with quick-lock nut
• Stable 40mm shaft
• Wheel weights up to 75kg
• Optional with wheel lift

Scope of delivery:

• 3 cones Ø45-111mm
• Quick-lock nut
• Clamping cap
• Pressure ring
• Rubber ring
• 60g counterweight
• Weight pliers

 Technical details:

• Max. wheel diameter : 36" | 914mm

• Shaft diameter : 40 mm

• Measuring speed : 100 rpm

• Measuring time : 4.7 s

• Display : 17" Industrial Touchscreen

• Max. rim width : 20"

• Max. rim diameter : 30"

• Max. wheel weight : 75 kg

• Motor power : 0.15 kW

• Min. rim diameter : 10"

• Min. rim width : 1.5"

• Wheel data recording : Semi-automatic
• Electrical connection : 1ph | 230 V | 50-60 Hz
• Weight : 110 kg
