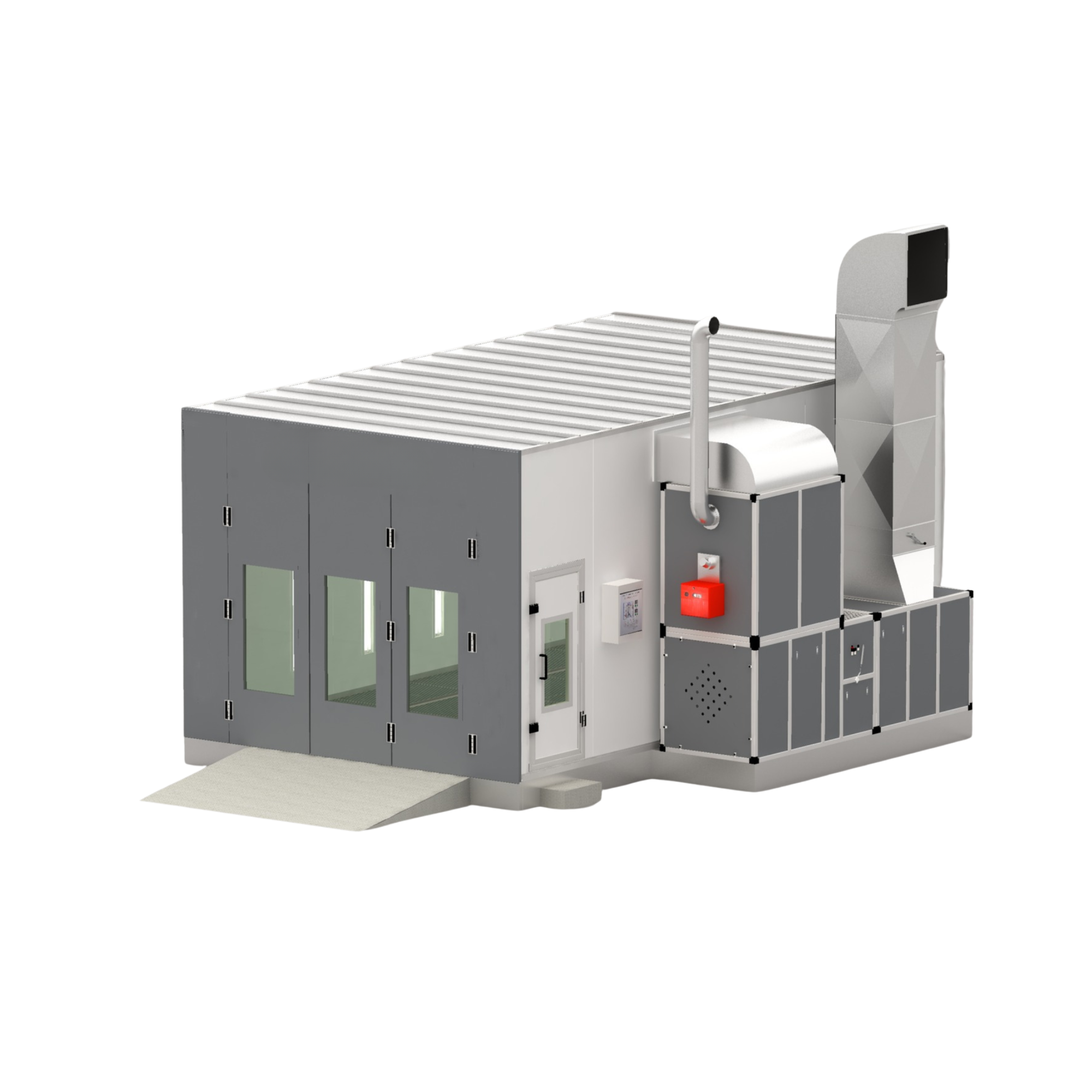

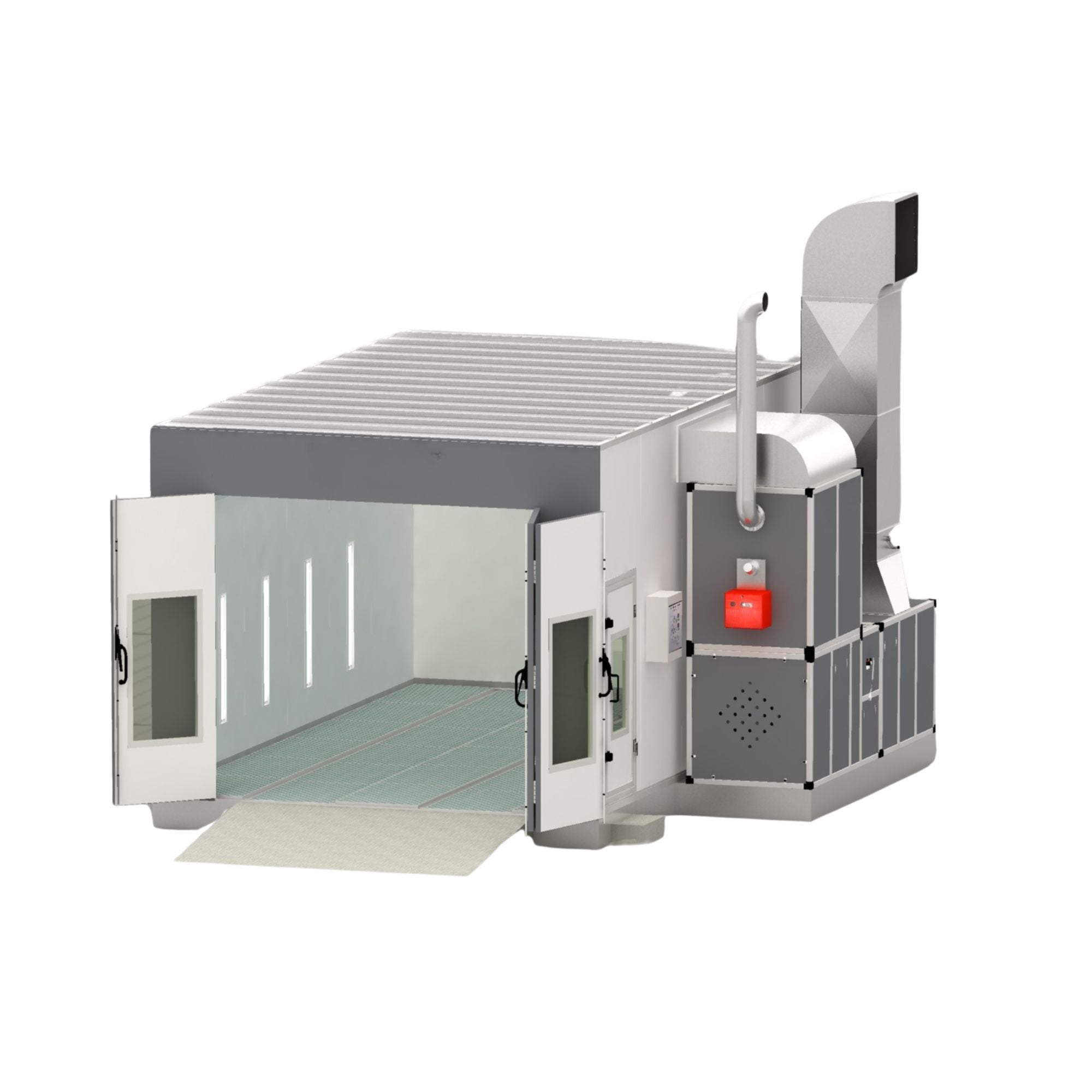

ARCO FORNO-PRO Paint Booth
92,000.00 AED
/
- Inside Size(LxWxH): 6900x4000x2650 mm
- Outside Size(LxWxH): 7006x4010x3400 mm
- Front Door(WxH): 3000x2600 mm
- Service Door(WxH): 800x2000 mm
- Total Power: 16 kW
Cabin System:
- Wallboard: Rockwool colorful steel skin panel, 50mm thick, 0.476 thick colored steel, tongue & groove style, compound construction, anti-flame and heat-insulation.
- Roof panel: Rockwool colorful steel skin panel, 50mm thick, 0.476 thick colored steel, tongue & groove style, compound construction, anti-flame and heat-insulation.
- Basement: 300mm height, galvanized steel sheet and square steel pipe assembling, full grids(5 rows), three ramps made of embossed plate, 2000x900mm (LxW).
- Front door: 3 folded glass door.
- Glass: main door and emergency door glasses are tempered glass.
Circulation System:
- Inlet Fan:
Model : Turbo fan
Capacity : 25000 m3/h
Power : 7.5 kw/set
Quantity : 1 set - Outlet Fan:
Model : Turbo fan
Capacity : 25000 m3/h
Power : 7.5 kw/set
Quantity : 1 set - One set pneumatic damper can automatically achieve from spraying to baking cycle.
Purification System:
- Primary filter, ceiling filter, floor filter, active carbon.
Heating System:
- SUS304 stainless steel heat exchanger, Italy Riello G20 diesel burner, heating capacity 180000 Kcal/h.
Lighting System:
- Ceiling light: 8 sets x 4pcs (32 pcs) 18W LED light, bottom light: 8 sets x 3pcs (24 pcs) 18W LED light, 800 Lux.
Controlling System:
- Micro-Computer Programme Controlling, main circuit has multi-protection. Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, temperature limit controller, emergency stop, breakdown alarm.
