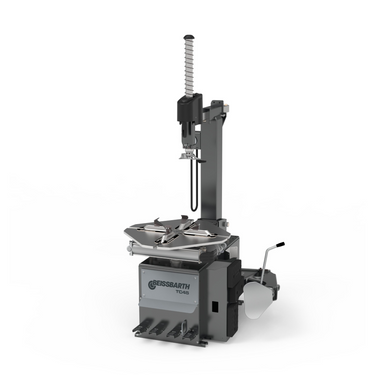

BEISSBARTH TC45 Automatic Tilt-Back Tyre Changer 10-27"
BEISSBARTH TC45 Automatic Tilt-Back Tyre Changer 10-27"
Order on WhatsApp
Pickup available at Garhoud, Dubai, UAE
Usually ready in 2-4 days
BEISSBARTH TC45 Tilt-Back Tyre Changer with 10–27" Range
A premium tilt-back solution for demanding garages, the TC45 features a square turntable, 2-speed rotation (8 & 16 rpm), and automatic centering jaws for fast, safe operation. Built to handle UHP, SUV, and run-flat tyres with confidence.
Equipped with a bead breaker shovel, four-pedal control (plus side inflation), and compatibility with the TCX.PRO, PRO2, and PRO3 assist arms—this machine ensures maximum power and operator comfort in busy UAE tyre workshops.
Technical Specifications
| Feature | Specification |
|---|---|
| Inner Clamping Range | 12" – 27" |
| Outer Clamping Range | 10" – 24" |
| Max. Wheel Diameter | 46" / 1170 mm |
| Max. Wheel Width | 15" / 381 mm |
| Operating Pressure | 8 – 12 bar |
| Power Supply | 3 Phase / 400V / 50–60Hz |
| Motor Power | 0.8 / 1.1 kW |
| Rotation Speeds | 8 & 16 rpm |
| Max. Torque | 1200 Nm |
| Turntable Height | 670 mm |
| Bead Breaker Force | 13000 N (Shovel) / 25000 N (Cylinder) |
Key Features
- Square turntable with 10–27" clamping range
- Auto-centering jaws with powerful 80mm double cylinders
- 2-speed motor operation for precision and speed
- Easy pedal-controlled tilt-back arm and rotation
- Bead breaker shovel with high clamping force
- Removable pedal unit and side inflation pedal
- Full metal pedals with safety separator design
- 50x50 mm heavy-duty horizontal arm with metal housing
Upgrade Options
- TCX.PRO / PRO2 / PRO3 Assistance Column
- Side Lift Kit
- Tubeless Inflation Kit
- Roller Board
Built for Precision. Trusted in UAE Garages.
The BEISSBARTH TC45 is the tyre changer of choice for busy UAE tyre shops and GCC workshops. Upgrade your equipment today with reliable German engineering. Contact us for a quote and nationwide delivery.
